Permission required to use this feature: automation
Journeys are built as a series of steps that are processed, one after the other, when triggered by a subscriber-related event.
There are five types of steps you can use to build a journey: email, delay, wait until, condition and custom field.

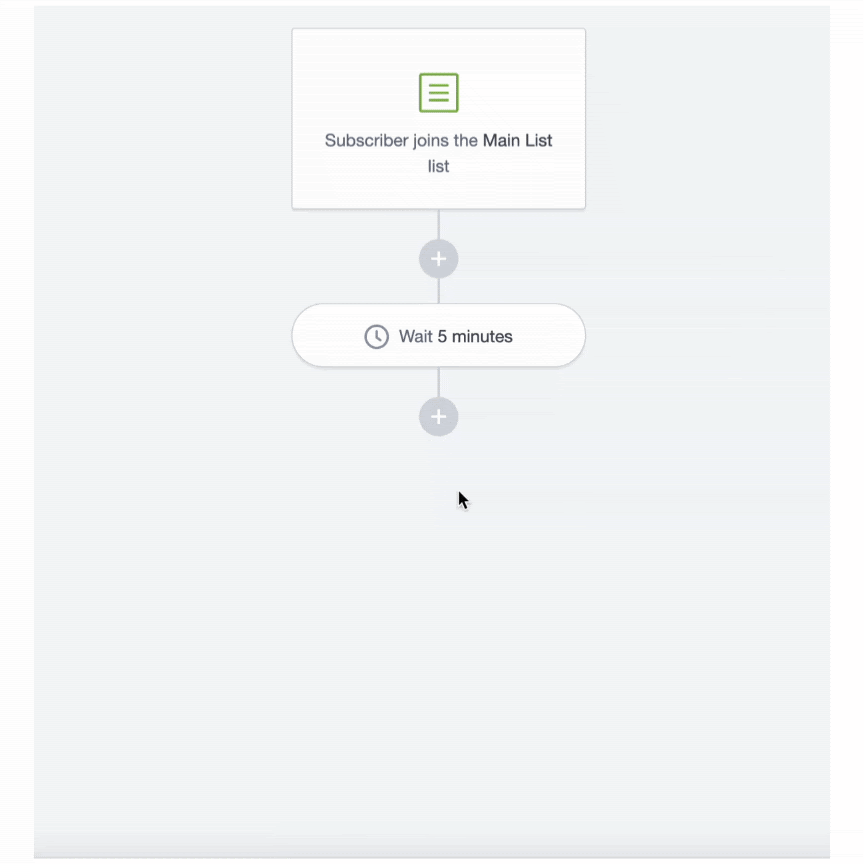

Insert a step by clicking wherever there is a + button in the journey designer. You can adjust a step's settings by clicking on it, then changing them in the left sidebar.
The maximum number of steps in a journey is 250.
Email steps

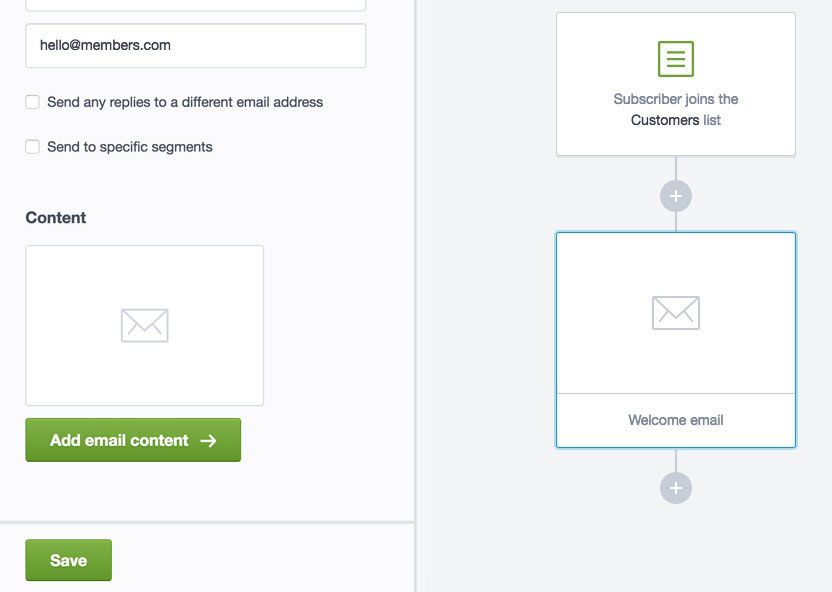

Email steps are where you define the content of the emails you will send in the journey. When you add an email step, complete the information in the settings panel (the step name, subject line, sender details and so on) then click Save. After that, click Add email content to create the email.

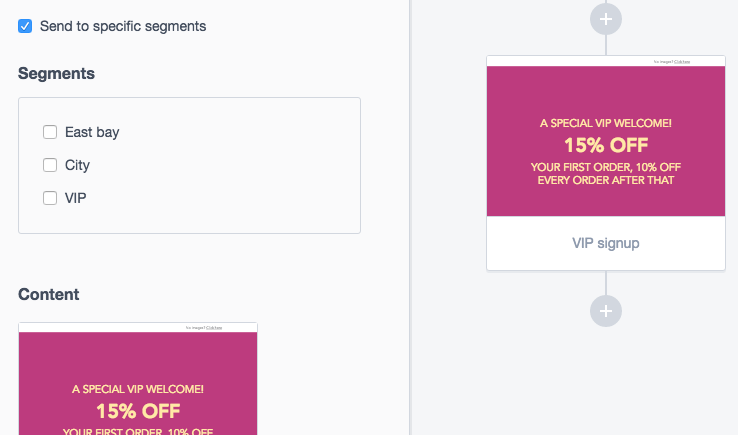

Send to specific segments
For each email added to the journey, you can choose to send it to everyone on the subscriber list, or only people who are members of certain segments, if you already have segments set up. To do so, select Send to specific segments in the settings panel:
Multiple segment selection
If you select more than one segment, it means the email will be sent to people who are in segment A, or segment B, or segment C.
If your intention is to email the subscribers who belong to all the selected segments, you will first need to create a segment that combines the rules of segments A, B and C, then select that.
Delay steps
Delays are "wait" steps, with the time set in minutes, hours, days, weeks, or months. Steps in a journey are processed immediately, one after the other, unless you put a "wait" step between them. Below are three examples of how to use delay steps.
For delay steps, a month is considered 30 days.
Space out a series of journey emails
For journeys that contain more than one email, add delay steps to the sequence so customers are not overwhelmed with messages. For example, you could send an email each day for a week by inserting a one-day delay between each email step.
Give recipients time to respond
Delays are important for certain types of condition-based journeys. For example, a condition step based on campaign activity requires a delay to give subscribers time to receive and open the email.
Use delays to send after a specific date

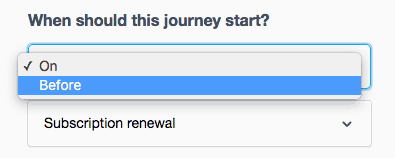

When you create date-triggered journeys you only get the option, in the settings panel, to send on or before the date in the subscriber's custom field:
To create a date-triggered journey where the first email is sent after the trigger date, choose On from the "When should this journey start?" dropdown menu. Click Save in the settings panel, then click the + button in the journey designer to add a delay step for however long after the date you want the email to be sent.

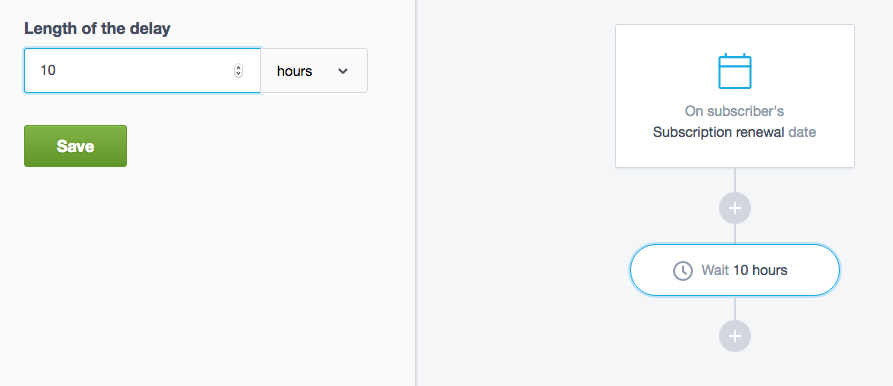

To change the length of time for a delay step, click the "Wait" step in the journey designer to open the settings panel:
The total length of time a journey can run, including delays, is 729 days. The exception is the "an anniversary of a date" journey, which can only run for a year.
Wait until steps
Wait until steps are “wait” steps. Steps in a journey are processed immediately, one after the other, unless you put a “wait” step between them. Subscribers entering this step will not proceed until one of the specified times and days of the week is reached, then they will proceed to the next step in the journey.
Wait until steps are processed in your account’s time zone, shown in the left sidebar. Your account’s time zone can be changed in Account settings.

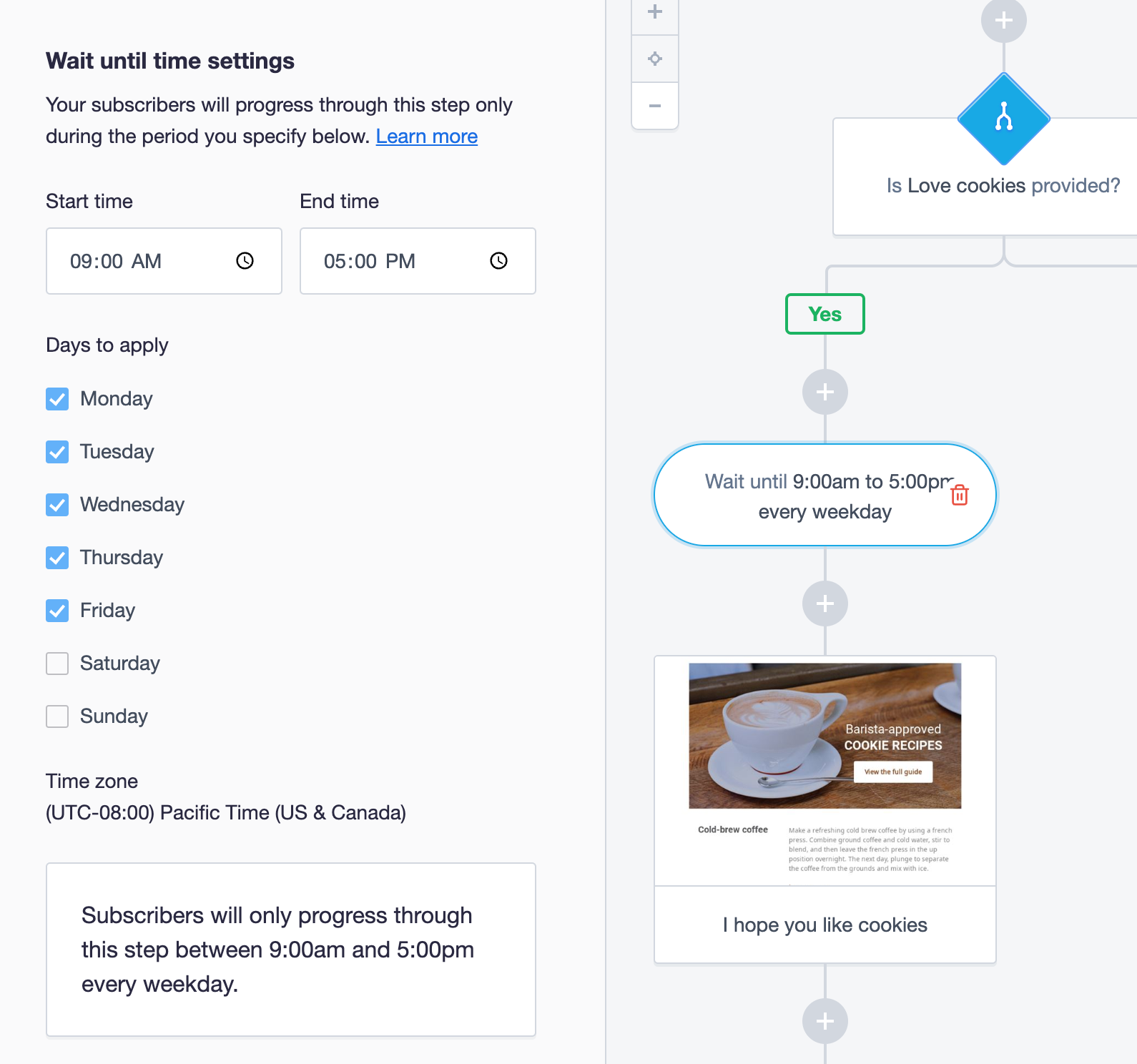

Wait until settings
Wait until allows you to specify a start time, end time, and days of the week that subscribers can progress through this step. Subscribers arriving outside those times will wait at the step until the specified period before proceeding to the next step in the journey.
Example: Email subscribers during business hours
For example, if you want to email your subscribers during business hours only, you would add a wait until step before your journey’s email step. Set the start time to 9:00am and the end time to 5:00pm, select weekdays only, and click Save.
In this situation, if a subscriber enters the wait until step on Sunday at 6:00am in your time zone, they will wait at the step until Monday at 9:00am. On Monday at 9:00am, the subscriber will then progress to the next step in the journey and be sent the email.
If a subscriber enters the wait until step within the specified start time, end time, and days, they will immediately proceed to the next step in the journey.
Condition steps

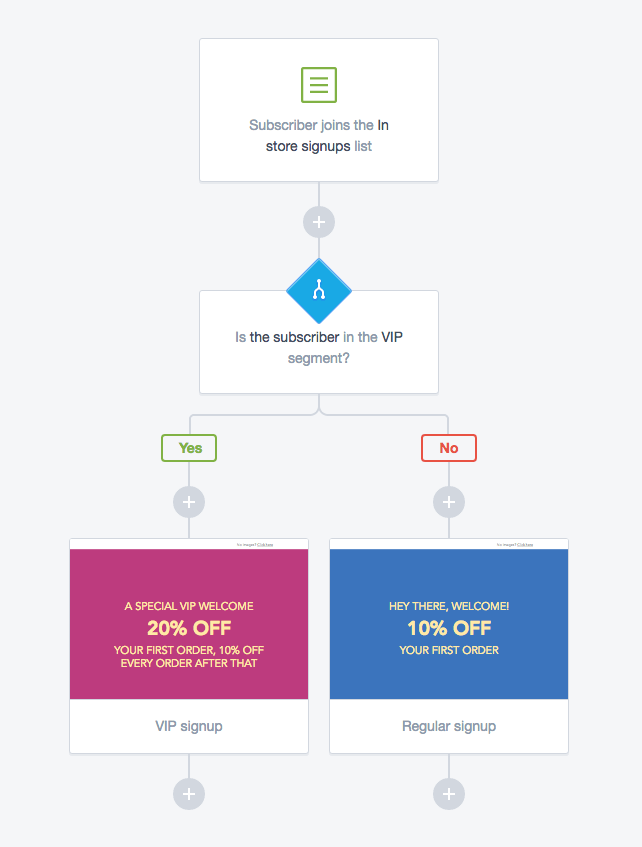

Conditions are steps that split a journey into two paths, based on a rule. For example, you might want to give VIP customers a larger discount when they sign up:
Subscribers who match the rule will follow the "Yes" path. Subscribers who don't will follow the "No" path.
After you have created separate paths with a condition, those paths cannot join back up later. For example, if you branch off to send a series of unique emails to VIP and standard customers, you can't merge the VIP and standard paths afterwards to send them the same email via a single step. That content will need to be duplicated in both paths.
Instead of using a condition to separate content for VIP customers, you could use our dynamic content feature to include the VIP messaging within a section.
Condition rules
Condition steps are built on rules, similar to segments. You can add up to five rules for any condition and specify whether any or all of the rules need to be true for the condition to be met.
After adding a condition step, start by choosing an attribute from the "Rule" section in the left sidebar:
Conditions based on campaign and journey activity don't wait for a response from the subscriber before being processed. Because of this, it's important to insert a delay step before the condition, so subscribers have time to open or click the selected email.
Subscribers who have not given their permission to be tracked will always be sent down the "No" path when campaign or journey activity are selected.
Subscriber details
Choose from the subscriber's name, email address or date subscribed to create a rule. For example, date subscribed is after YYYY-MM-DD.
Custom fields

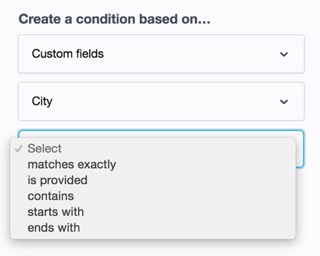

Create a condition based on data stored in your list's custom fields. For example, your subscribers' city or state:
Segment membership
A condition based on segment membership checks if a subscriber is currently a member of a specific segment, to determine which email they are sent.
Campaign activity
Choose this option to create a condition based on subscriber activity in a previously sent campaign. You'll be prompted to select a campaign and the type of campaign activity that fits your purpose. For example, if the campaign:
- Was opened
- Had any link clicked
- Had a specific link clicked
- Was opened with no links clicked
- Was opened and did not have a specific link clicked
The previously sent campaign has to have been sent to the same list the journey is being sent to. You also need to have sent the campaign before defining the journey condition. You can't select a draft campaign, or a campaign that is scheduled to send later.
Journey activity
This option allows you to create a condition based on journey engagement. It can be set up to track email activity in the journey you're currently working on, or an email in a different journey (so long as it's being sent to the same list).

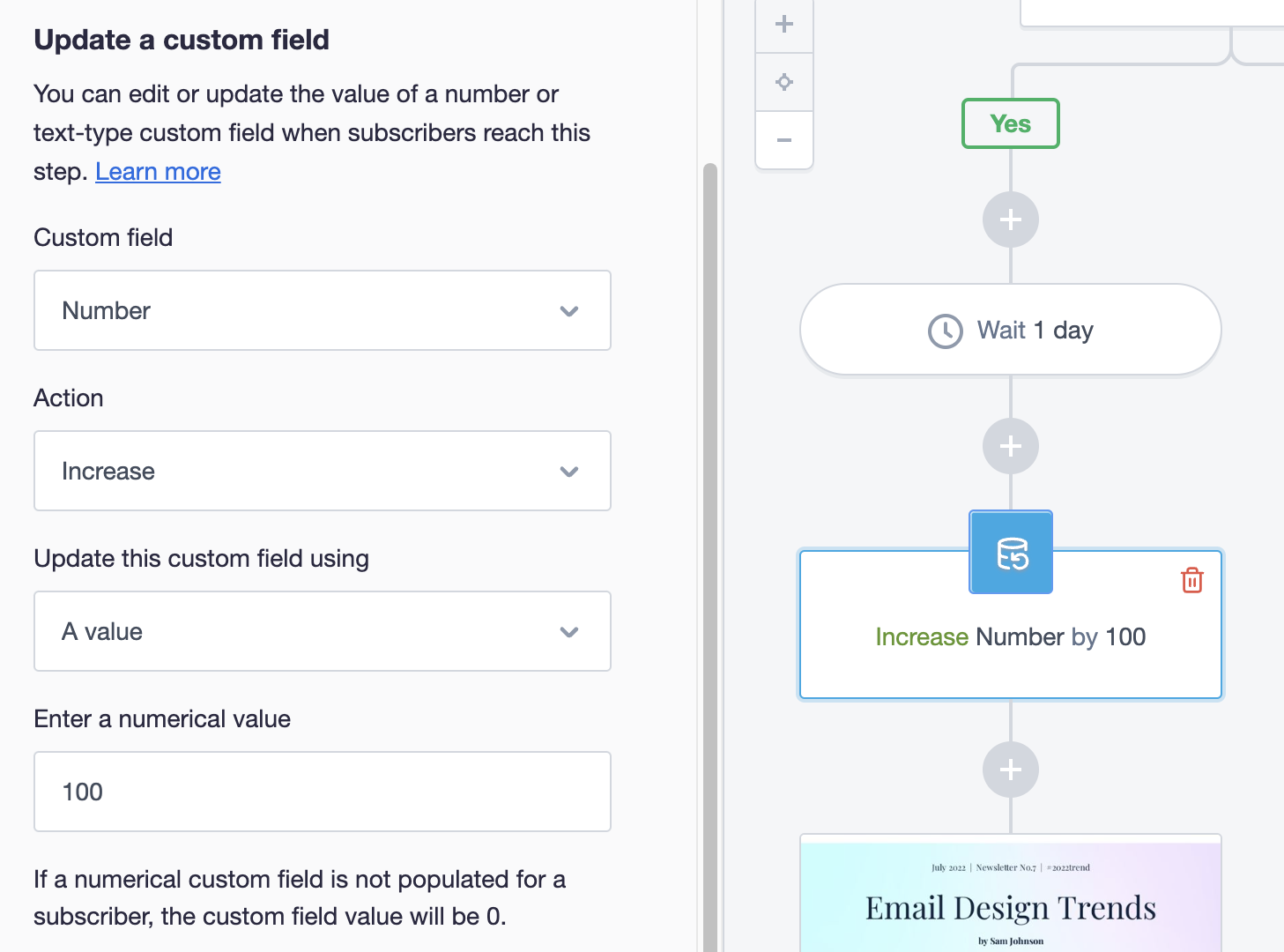

Custom field steps
Custom field steps allow you to update the data stored in your subscribers’ custom fields. For example, you might want to increase a custom field by 1 each time the subscriber enters an anniversary journey, counting how many years they have been subscribed. When you add a custom field step, complete the configuration in the left sidebar (the custom field, action, and value) then click Save.
Currently, only number and text-type custom fields can be updated by the custom field step.
The Action field provides the following options:
- Set – This sets the value of the custom field to the value based on the configuration you set.
- Increase – This increases the value of the custom field by an amount based on the configuration you set.
- Decrease – This decreases the value of the custom field by an amount based on the configuration you set.
If the subscriber has an empty value in the custom field that is being increased or decreased, we will treat the custom field as if it has a zero value.
You can update the custom field using a value you set, from another custom field, or with trigger event data.
Update with another custom field
If you choose to update a custom field using another custom field, they must be of the same type. For example, text custom fields can only be used to set text custom fields, and number custom fields can only be used to increase, decrease, or set number custom fields. You cannot set a text custom field using a number custom field.
When using another custom field to update, if a subscriber has an empty value in that field, we will not update. For example, if you want to set the subscriber’s custom field VIP using the value of the Loyalty Tier custom field. If the subscriber does not have a value in Loyalty Tier, their VIP custom field will remain unchanged.

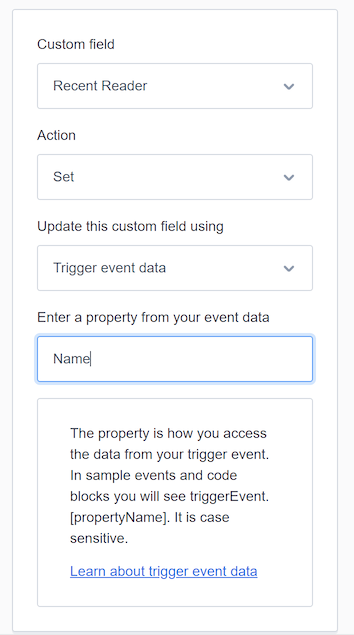

Update with trigger event data
Available on the Essentials/Unlimited and Premier monthly plans
This option can be used with Subscriber activity journeys.

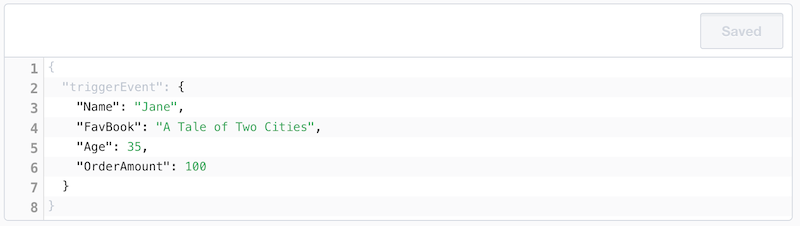

Your sample trigger event data might resemble the following structure:
The property name is the key to accessing data from your trigger event, and case sensitivity matters. For instance, “FavBook” will yield A Tale of Two Cities, but “Favbook” will result in skipping the update custom field step.
The property value is used to update custom field values.
Update text fields
Text custom fields can be updated with the Set action.
For example, if the property name is “Name”, then during the update custom field step, the custom field value will be set to Jane.
Update number fields
Number fields can be updated with Set, Increase, or Decrease actions.
When increasing, if the property name is “OrderAmount”, then during the update custom field step, the custom field value will be increased by the value of “OrderAmount”, in this case 100.
If a number field isn't populated for a subscriber, we will treat the custom field as if it has a zero value.
Handling missing or incomplete data
If the property name doesn't exist in your trigger event, the subscriber's custom field won't be updated when they reach the update custom field step in the journey.
If the property value is a text and you're updating a numeric custom field, the update won't occur.
Calculations
Available on the Essentials/Unlimited and Premier monthly plans
Calculations can be applied to a custom field or event data before using that value to update another custom field. Calculations are only available for number type custom fields. You can apply up to 5 calculations. The first calculation will be applied to the value of the custom field or event data, then every calculation after that will apply to the result of the previous calculation.
There are 3 types of calculation you can apply:
- Multiply – multiplies the result of the previous calculation by a value you supply
- Round up to nearest whole number – rounds the result of the previous calculation to the nearest whole number
- Round down to nearest whole number – rounds the result of the previous calculation down to the nearest whole number

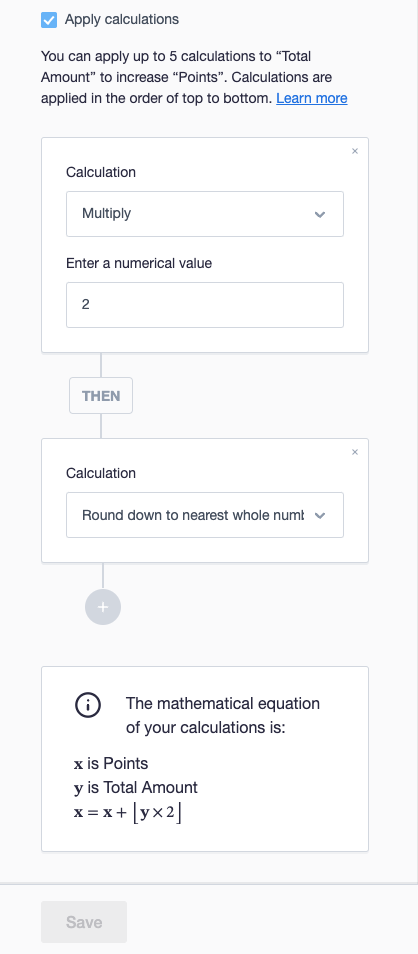

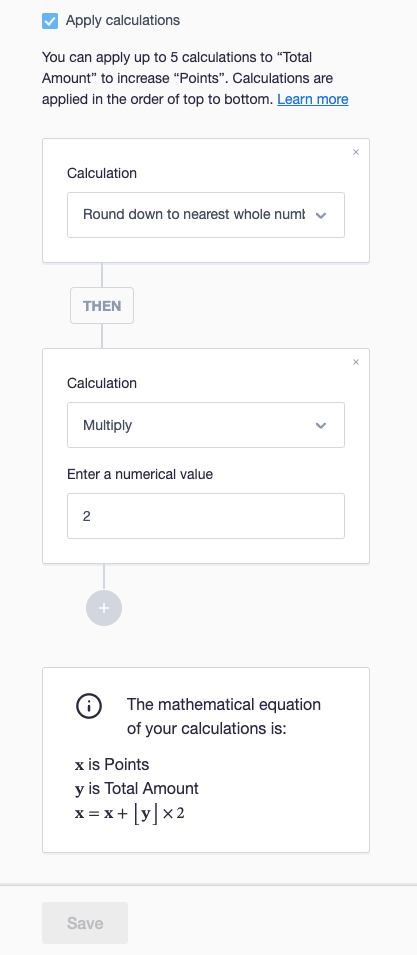

The order you apply the calculations is important. For example, if you wanted to increase the Points custom field by 2 times the Total Amount custom field, then round down to the nearest whole number. You should:
- Choose the Points custom field as the custom field you want to update
- Choose the Increase operation
- Choose the Another custom field for what you are using to update this custom field
- Check Apply calculations
- Add a calculation to multiply by 2
- Add a calculation to round down to the nearest whole number
If your Total Amount is 24.60 this would make your calculations evaluate to:
- The [Total Amount] value starts at 24.6
- Multiply by 2 results in 50.2
- Round down to the nearest whole number results in 50
- [Points] will be Increased by 50
If you were to swap the order of the multiplying and rounding calculations you would get a different result. If your Total Amount is 24.60 this would make your calculations evaluate to:
- The [Total Amount] value starts at 24.6
- Round down to the nearest whole number results in 24
- Multiply by 2 results in 48
- [Points] will be Increased by 48
If any of your calculations are invalid we will move the subscriber to the next step of the journey without updating the custom field. For example, if there is no value for that subscriber in the custom field or event data we are calculating against.
Each calculation's result has to be between -2,000,000,000 and 2,000,000,000, otherwise it will be invalid.

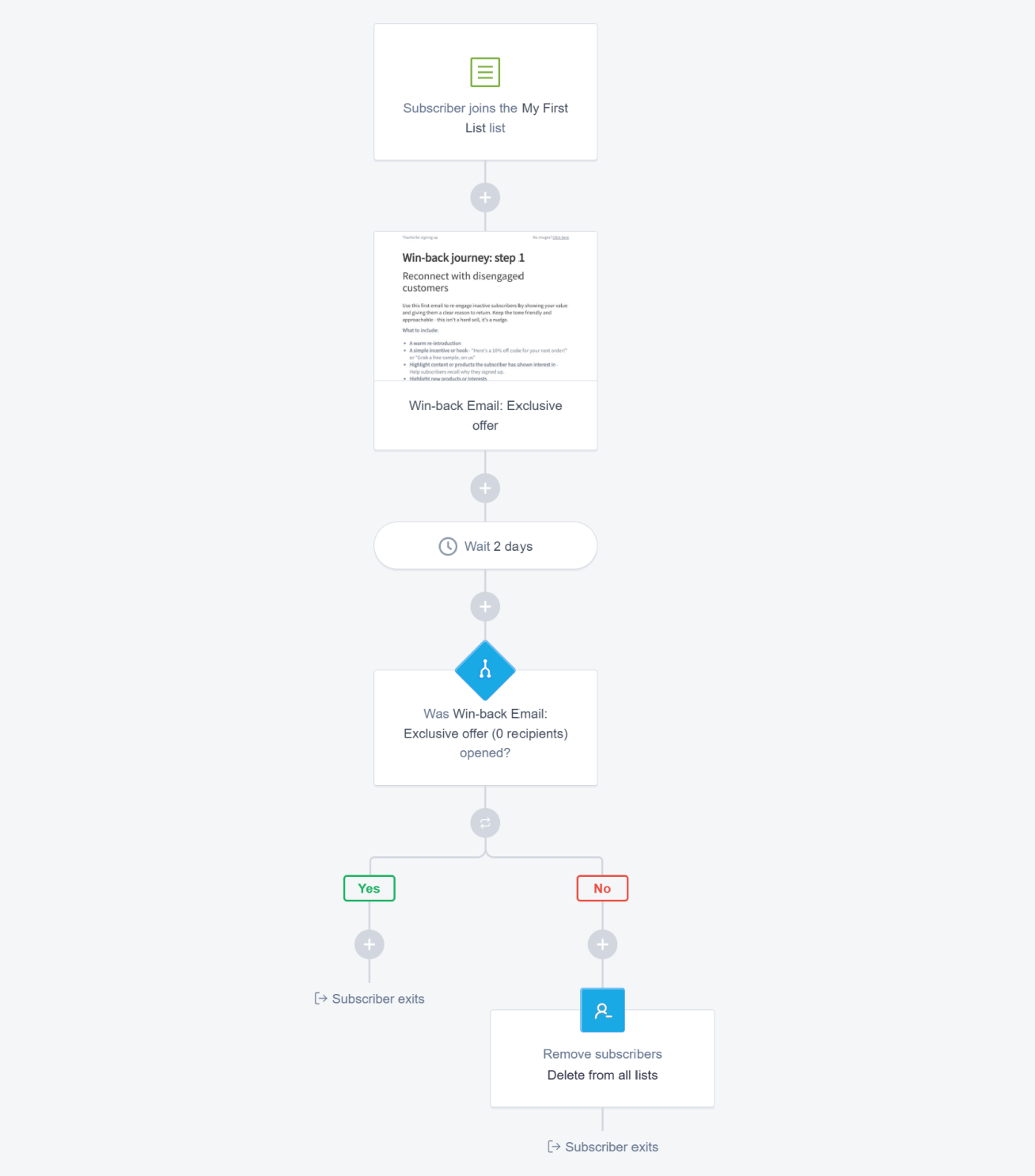

Remove subscriber step
The “Remove subscriber” step is designed to help maintain a healthy and engaged subscriber list by allowing users to automatically remove subscribers based on specific criteria within an automated journey. This step is particularly useful for implementing list hygiene practices, such as removing inactive subscribers.
Key characteristics
Removal options:
- Delete from this list only: Removes the subscriber from the current list but retains their data in other lists
- Delete from all lists: Removes the subscriber from all lists within your account
Data handling: Subscribers removed through this step will have their status updated to “deleted” and will not be classified as “unsubscribed”. Their data will no longer be used in future campaigns unless re-added.
Final step: Due to the nature of this step's purpose, the “Remove subscriber” step will always be the final step in the journey. Once a subscriber reaches this step, they will exit the journey. This also means that you may not add this step between pre-existing steps, since no step may follow the removal of a subscriber.
